AbbottArchitect C8000

Multi-Dimensional Sampling (MDS) improves laboratory effciency:

Robotic Sample Handler (RSH) maximizes analytical productivity with "real time" STAT, automated rerun, and reflex testing capabilities.
Multiple sample loading of up to 217 samples via priority (35), routine (150), and carousel (32) areas simplify sample loading and unloading with continuous sample access.

Flexibility to place predefined calibrators and quality control via the RSH or sample carousel.

Ergonomically designed sample trays accommodate up to 25 samples, facilitating workflow efficiency .

Enhanced sample management mini mizes operator handling:

5-position carrier with spring-loaded fingers accommodates a vast majority of test tube types:
                    Primary or aliquot tubes.
                    10-16 mm width, 75-100 mm height.

A variety of sample cups and false bottom tubes maintains barcode integrity for short/pediatric samples.Intuitive indicator lights assist the operator in assessing sample status at a glance.

Clot detection utilizing pressure differential technology ensures accurate sampling.

Common carrier processes multiple sample types, calibration, and quality control material to reduce sample sorting

AbbottCELL DYN

AbbottCell Dyn 1300

Cell-Dyn 1300

Abbott Cell Dyn 1600 Hematology Analyzer. This automated instrument measures WBC, RBC, HGB, HCT, MCH, MCHC, PLT.

AbbottCell Dyn 1600

CELL DYN 1600

Cell Dyn 1600 Hematology Analyzer. This automated instrument measures WBC, RBC, Hgb, Hct, MCH, MCHC, Plt, RDW, MPV, L%, G%, G#, MID%, and MID#.
The Cell Dyn is a multi-parameter hematology analyzer designed for in vitro diagnostic use in clinical laboratories. Components: Specimen Analyzer ( hardware to aspirate, dilute and analyze each whole blood specimen) and Data Module (computer, video display monitor, membrane keypad, disk drive, and printer).
Includes all operator manuals. Parameters are 16; 3-pt Differential. Throughput is 60 samples/hour. Volume Impedance method with an open system. Dimensions are 18"h x 30"w x20"d. Weight is 145lbs. Power requirments 90-125V, 50-60Hz. 195-259V, 50Hz. Power consumption 1000 Watts maximum.

AbbottCell Dyn 1700

The CELL-DYN 1700 was developed to address hematology needs in today's changing laboratory environment. Ease of use, low maintenance, closed-tube sampling, small sample requirements, and high reliability are features expected in the modern hematology lab. New challenges have made fast access to results, sophisticated data management, and simplification of data interpretation necessary to meet the increasing demands of current clinical practice. The CELL-DYN 1700 can deliver all these features to any size hematology lab that demands the latest in technology.
TheCELL-DYN 1700 provides fast, accurate results and differential screening with sophisticated data management, in a compact, easy-to-use system
·    18-parameter* automated system
·    Three-part leukocyte differential
·    Optional closed sampling system
·    Graphical display with three histograms
·    30 microliter sample requirement
·    60 seconds for a Complete Blood Count
·    5,000 specimen data storage with graphics


The CELL-DYN 1700 was developed to address hematology needs in today's changing laboratory environment. Ease of use, low maintenance, closed-tube sampling, small sample requirements, and high reliability are features expected in the modern hematology lab. New challenges have made fast access to results, sophisticated data management, and simplification of data interpretation necessary to meet the increasing demands of current clinical practice. The CELL-DYN 1700 can deliver all these features to any size hematology lab that demands the latest in technology.

The CELL-DYN 1700 provides fast, accurate results and differential screening with sophisticated data management, in a compact, easy-to-use system
This unit is a multiparameter hematology analyzer designed for use in clinical laboratories as well as physician office laboratories. This compact easy-to-use system offers low maintenance, small sample requirements, and high reliability. The Abbott CELL-DYN 1700 generates the following measurements on Tri-pottasium EDTA (K3 EDTA) anticoagulant whole blood. WBC, RBC, HGB, PLT, LYM, %LYM, GRAN, %GRAN, MID, %MID, MCV, HCT, MCH, MCHC, RDW, MPV, PCT, PDW.

- Easy to Operate.
- Color Display with full Keyboard.
- Patient name & comments on report.
- Proven accuracy and reliability.
- Easy to obtain reagents and controls.
- 60 CBC's per hour maximum.
- 3 Part Differential with counts and percents.
- WBC, RBC & PLT Histograms on screen and printed on included graphic printer.
- LIS capability including histograms
- Only 30uL of sample required.
- Full computer system with QC, Control Values, Reagent logs, Levy-Jennings charts, Westguard rules, etc.
- All necessary data for compliance on-line.
- Comprehensive diagnostic messages.
- Universal Power 120/240V 50/60Hz.
- 18-parameter automated system
- Three-part leukocyte differential
- Optional closed sampling system
- Graphical display with three histograms
- 30 microliter sample requirement
- 60 seconds for a Complete Blood Count
- 5,000 specimen data storage with graphics

AbbottCell Dyn 1800

CELL-DYN 1800

System Features
-  Uses only three reagents, including CN-Free lyse that are individually packaged and monitored to eliminate waste and improve operator safety
- Only 30 µL aspiration volume
- Compact benchtop analyzer with integrated data station does not require a PC or desktop computer
- Levy-Jennings, Westgard Rules and XB QC management system
- Operator productivity is maximized to reduce hands on time
- Available as an open sampling system with throughput of up to 60 samples per hour
- Optional bar code reader eliminates transcription and data entry errors
- Full data management with data storage for 10,000 cycles with intuitive software and graphics allows for easy assessment of patient results
- Minimal maintenance with a reliable system provides increased confidence and uptime for the laboratory.

AbbottCell Dyn 3000

Cell-Dyn 3000

Abbott Cell Dyn 3000 has capability to measure parameters including WBC, RBC, Hgb, Hct, MCV, MCH, MCHC, PLT, MPV, RDW, M%, M#, G%, G#, E%, E#, L%, L#, B%, and B#.
Abbott Cell Dyn 3000 has a throughput of 110 CBCs per hour. This analyzer with S150 open and 250 closed options has standard features such as closed tube sampling, 5 part differential, histograms and scatterplots, RS 232 Interface.

AbbottCell Dyn 3500

Cell-Dyn 3500

The Abbott Cell Dyn 3500 automated hematology analyzer employs dual technologies to provide the basis for a five-part WBC differential. Multi-Angle Polarized Scatter Separation (M.A.P.S.S.) provides the primary white blood cell count, all differential information, and reticulocyte analysis, while impedence provides additional information in the presence of fragile lymphocytes and hypotonically resistant red blood cells. The instrument features extended WBC and PLT linearity, RBC and indices corrected for WBC count. The Cell Dyn 3500 features an automatic start-up cycle designed to prime the flow system and check the background counts. The analyzer also automatically performs a shut-down cycle and places itself in a standby mode. It offers both open and closed sampling options on two instrument versions. A patient report can be customized to include the following information: patient identification, 22 parameters and a limit sets, color cytograms, color histograms, and manual differential transcription area on a color printout. The 540 MB hard drive provides for on-board storage of 10,000 patient reports. The multi-tasking system permits data editing while samples are being processed.
Accurately Measures 22 Parameters:
WBC, NEU#, NEU%, LYM#, LYM%, MONO#, MONO%, EOS#, EOS%, BASO#, BASO%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV

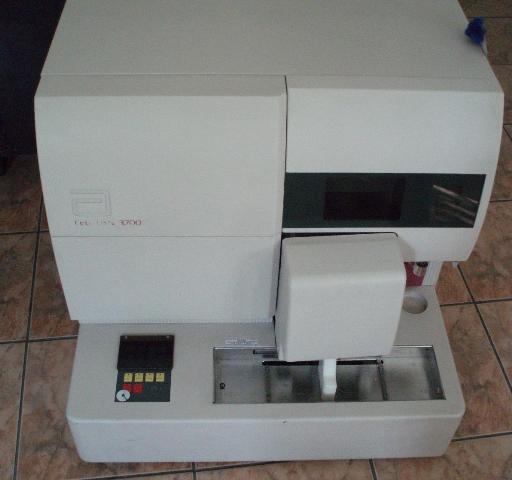

AbbottCell-Dyn 3700 SL

The CELL-DYN 3700 offers advanced diagnostic capability for clinical laboratories. The instrument performs simultaneous optical and impedance measurements on white blood cells, and has been designed to choose the correct answer even in the presence of problematic specimens. This capability equates to better accuracy, less review and a higher number of reportable patient results. The CELL-DYN 3700 can be configured as a fully automated system including a sample loader or as a single sample closed system. The system provides a complete 23-parameter CBC at a rate of 90 samples per hour.
